0.1 Micron Airborne Particle Counter: Lasair® III 110 Mobile

Sensitivity range: 0.1 - 5.0 µm - The only true 0.1 micron particle counter

The Lasair^® III 110 Airborne Particle Counter is a laser diode-based, true 0.1 micron (μm) particle counter with a 1 CFM flow rate. It provides real-time measurement of yield-impacting particles. It is part of the series of cleanroom particle counters from Particle Measuring Systems.

With a comprehensive set of features and unequaled accuracy, it offers reduced operating costs and the reliability and longevity to support its three-year laser warranty. It features a chemical-resistant, stainless-steel case that is easy to clean/wipe down and is designed to minimize particle traps. Patented Smart Flow technology eliminates traditional under-counting errors in manifold sampling. Additionally, optional on-board batteries provide over seven hours of continuous mobile use, so you can run a sample for an entire shift without having to leave the cleanroom.

The Mobile Lasair III 110 0.1 micron particle counter can be used as a mobile counter to localize the source of particles, making this an ideal tool for ISO-14644-1 clean room certification for class 1 and 2 cleanrooms.

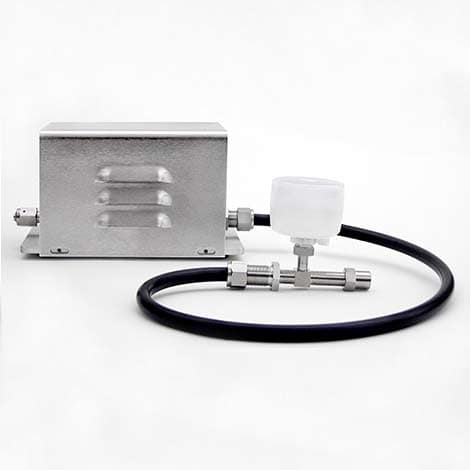

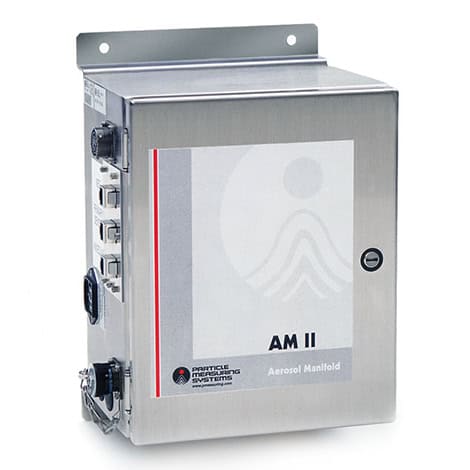

The Lasair III 110 particle counter comes with a full range of accessories for monitoring in different applications, including high-pressure gas with the Particle Measuring Systems’ High Pressure Diffusers. Both are also compatible with the Particle Measuring Systems Aerosol Manifold II to enable clean room monitoring with a single counter.

Click here to be contacted about the Lasair III 110 mobile airborne particle counter or the Lasair III 110 0.1 micron line of particle counting instruments.

Particle Measuring Systems engineers, manufactures, installs, calibrates, repairs, and maintains the Lasair^® III 110 Airborne Particle Counter.

Lasair III 110 Spec Sheet Request a Quote

.1 Micron Particle Measuring Device: Lasair III 110

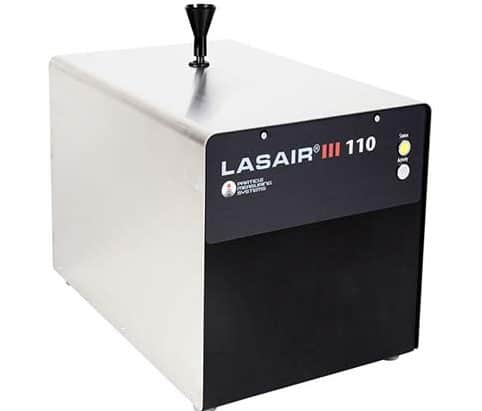

Lasair III 110 L3 110 inline 0.1 micron particle counter

.1 Micron Contamination Control Solution

Product Details Resources Accessories Get in touch

Product Details

Features

True 0.1 micron particle counter
Diode laser
Eight user-adjustable size channels from 0.1 to 5.0 μm
Saves up to 10,000 samples for review, sorting, data filtering, and printing
USB data download to flash memory key

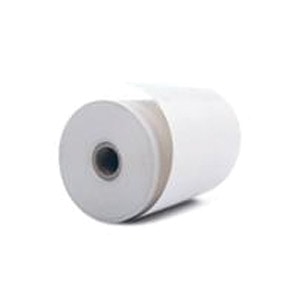

Built-in thermal printer
Large, 8.4 inch IR touchscreen can be used when wearing gloves for simplified use
Quiet carbon-free blower/pump for portable applications
Particle counter integrates up to four environmental sensors; differential pressure, temperature and relative humidity, airflow velocity, and more
Optional high-efficiency exhaust filter for ISO Cleanroom Class 1-2
Available in 12 languages so you can use the same instrument and process across language barriers
Calculations and reports for ISO 14644-1 or FS 209E

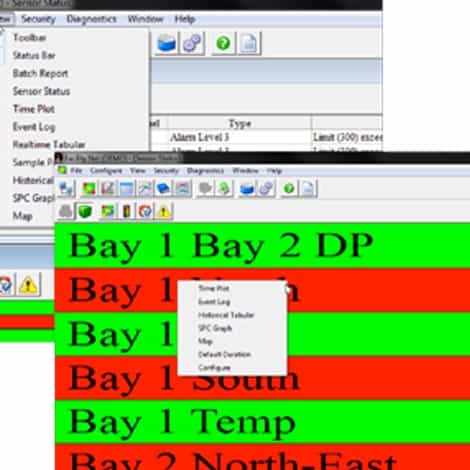

Interfaces with FacilityNet Software for comprehensive data management

Benefits

Saving/reloading recipes reduces time to certify your cleanroom, and reduces risk for errors
Control airborne cleanroom particle monitoring remotely via web browser: set-up, sample, display, print, download data and upload sample recipes without having to re-enter the cleanroom
Comprehensive cleanroom data management
Data download to Excel or USB flash memory key
Use same airborne particle counter for ISO Class 1-9 applications
Diode laser eliminates need for frequent, costly laser cleaning
Optional critical orifice configuration can use house vacuum for aerosol manifold applications
