High-Sensitivity Liquid Particle Counter: HSLIS
The HSLIS series is engineered to safeguard your critical processes by delivering continuous, real-time contamination monitoring in DI water and process chemicals including corrosive liquids such as hydrogen fluoride (HF).
Several models available to meet a wide variety of applications
Cost-effective solution without compromise
High sensitivity: down to 0.05 µm in DI water and 0.065 µm in chemicals
Product Details
HSLIS counters provide affordable, adaptable, and robust monitoring to prevent contamination and protect product integrity—essential for facilities committed to uncompromised quality.
HSLIS delivers a comprehensive data management solution designed for control, compliance, and actionable insights.
- Centralized Control via Facility Net: integrates seamlessly with Facility Net software, enabling centralized monitoring and control of multiple instruments across your facility.
- Real-Time and Historical Data Visualization: Simplified interpretation through real-time plots and retrieved time charts, plus tabular and SPC (Statistical Process Control) charts for trend analysis and process optimization.
- Automated Alerts and Notifications: Built-in alphanumeric paging and email functions notify operators of data excursions, ensuring rapid response to contamination events.
- Flexible Integration: Outputs include Ethernet communication, 4-20 mA signals, and RS-232 diagnostics, allowing integration with SCADA, PLC systems, or other industrial control platforms.
- Customizable Data Parameters: Users can configure cumulative vs. differential data, update intervals, raw vs. normalized counts, and scaling for each channel, tailoring the system to specific process needs.
From ultrapure water to aggressive chemicals, HSLIS counters adapt seamlessly to diverse environments—including Class I, Div 2 hazardous areas—without compromising safety.
- e Series
- M50e: Sensitivity range: 0.05 – 0.2 µm

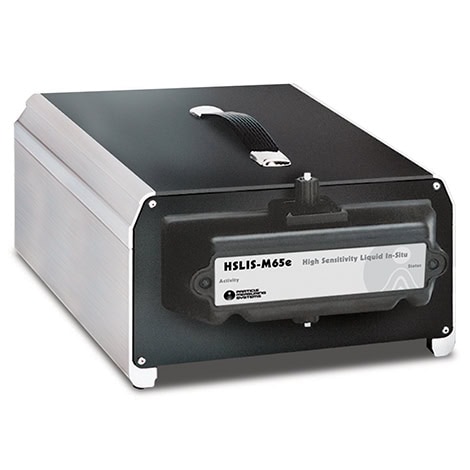

- M65e: Sensitivity range: 0.065 – 0.2 µm
- M100e: Sensitivity range: 0.1 – 1.0 µm

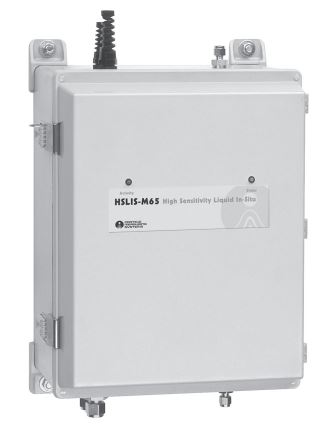

- HSLIS M65 ANSI/ISA-Compatible: Sensitivity range: 0.065 – 0.2 µm

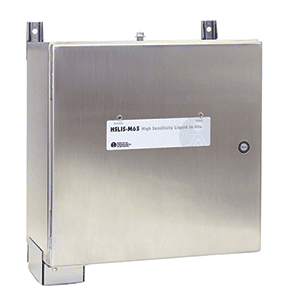

- HSLIS M65 ATEX-ANSI/ISA-Compatible: Sensitivity range: 0.065 – 0.2 µm
Resources
-
Liquid Particle Counter: HSLIS-M65e ATEX-ANSI/ISA Compatible
-
HSLIS-M65 ATEX-ANSI/ISA Particle Counter Operations Manual
-
OPERATIONS MANUAL: HSLIS e-Series Particle Counter
- OPERATIONS MANUAL: HSLIS e-Series Particle Counter
- Particle Monitoring Strategies in UPW: 300 mm Fabs
- Precision at the Source: Particle Control for Semiconductor Chemical Suppliers
- Particle Contamination in Chemical Distribution Systems
- Why Particle Monitoring in Process Chemicals Is Non-Negotiable
- Ultra-Pure Water Particle Measurements: Factors Affecting Stabilization Time
- Which Ultrapure Water Particle Counter is Best for Your Application?
